AndroidNativeEmu模拟执行大厂so实操教程(四) 函数功能实现

一、目标

上篇教程我们填了jmethodID相同的坑之后，报错:

logger.debug("JNIEnv->GetMethodId(%d, %s, %s) was called，jvm_id = %d" % (clazz_idx, name, sig, method.jvm_id))
AttributeError: 'NoneType' object has no attribute 'jvm_id'

二、步骤

从错误提示上看应该是 method的类型是 Nonetype, 先不管，我们看看别的参数是什么，把打印部分的代码改成：

logger.debug("JNIEnv->GetMethodId(%s, %d, %s, %s) was called" % (type(clazz), clazz_idx, name, sig))

再跑

RuntimeError: Could not find method ('getPackageName', '()Ljava/lang/String;') in class android/app/Activity.

好吧，把Activity的getPackageName方法加上，这里也有jmethodID相同的把戏，所以我们把jvm_id也加上一个。

class Application(metaclass=JavaClassDef, jvm_name='android/app/Application'):
    def __init__(self):
        pass

    @java_method_def(name='getPackageManager', signature='()Landroid/content/pm/PackageManager;' , native=False,jvm_id=0xd2000000+0x1000)
    def getPackageManager(self, mu):
        logger.info("Im in Application.getPackageManager")
        pass

    @java_method_def(name='getPackageName', signature='()Ljava/lang/String;' , native=False,jvm_id=0xd2000000+0x1004)
    def getPackageName(self, mu):
        logger.info("Im in Application.getPackageName")
        return "com.jingdong.app.mall"

class Activity(metaclass=JavaClassDef, jvm_name='android/app/Activity'):
    def __init__(self):
        pass

    @java_method_def(name='getPackageManager', signature='()Landroid/content/pm/PackageManager;' , native=False,jvm_id=0xd2000000+0x1000)
    def getPackageManager(self, mu):
        logger.info("Im in Activity.getPackageManager")
        pass

    @java_method_def(name='getPackageName', signature='()Ljava/lang/String;' , native=False,jvm_id=0xd2000000+0x1004)
    def getPackageName(self, mu):
        logger.info("Im in Application.getPackageName")
        return "com.jingdong.app.mall"

在跑

 androidemu.java.jni_env | JNIEnv->call_object_method(16780528,3523215368) was called
 ......
 raise RuntimeError('Invalid get_reference(%d)' % idx)
RuntimeError: Invalid get_reference(16780528)

3523215386 从前面的日志能找到是getPackageInfo方法的jvm_id，那16780528是什么？从日志里看不出来。

 DEBUG    androidemu.java.java_method_def | JavaMethodDef name =getPackageInfo,jvm_id = 3523215368

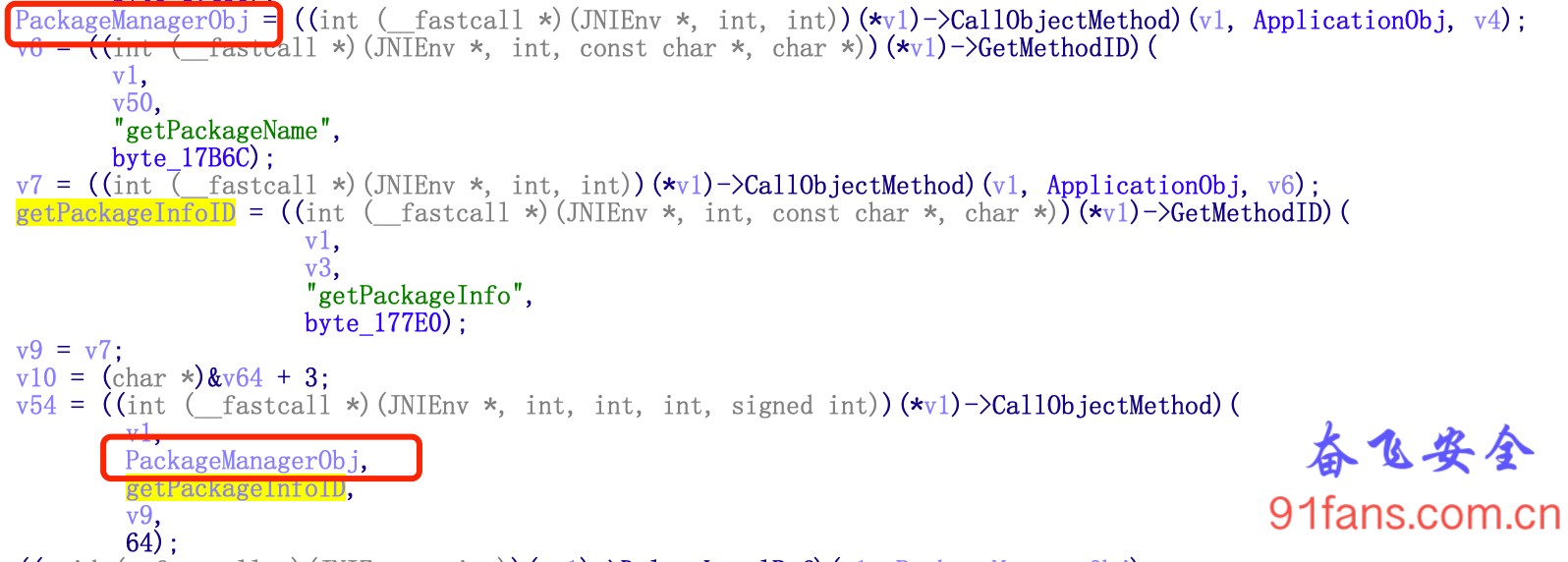

我们来看看IDA反编译出来的代码:

这是之前调用 Application.getPackageManager() 来返回的PackageManager对象，在之前的代码里我们只打印了一下日志，并没有实现这个函数，参考下原作者定义的PackageManager类，我们学着实现这个函数：

class Application(metaclass=JavaClassDef, jvm_name='android/app/Application'):
    def __init__(self):
        self.__pkg_Manager = PackageManager()
        pass

    @java_method_def(name='getPackageManager', signature='()Landroid/content/pm/PackageManager;' , native=False,jvm_id=0xd2000000+0x1000)
    def getPackageManager(self, mu):
        logger.info("Im in Application.getPackageManager")
        return self.__pkg_Manager


class Activity(metaclass=JavaClassDef, jvm_name='android/app/Activity'):
    def __init__(self):
        self.__pkg_Manager = PackageManager()
        pass

    @java_method_def(name='getPackageManager', signature='()Landroid/content/pm/PackageManager;' , native=False,jvm_id=0xd2000000+0x1000)
    def getPackageManager(self, mu):
        logger.info("Im in Activity.getPackageManager")
        return self.__pkg_Manager

继续跑，成功跑过去，明天再继续
