用python的Flask库启动一个web Server,结合frida通过直接调用某段子App的方法来计算sign。

  • 某段子App版本 5.5.10

二、分析

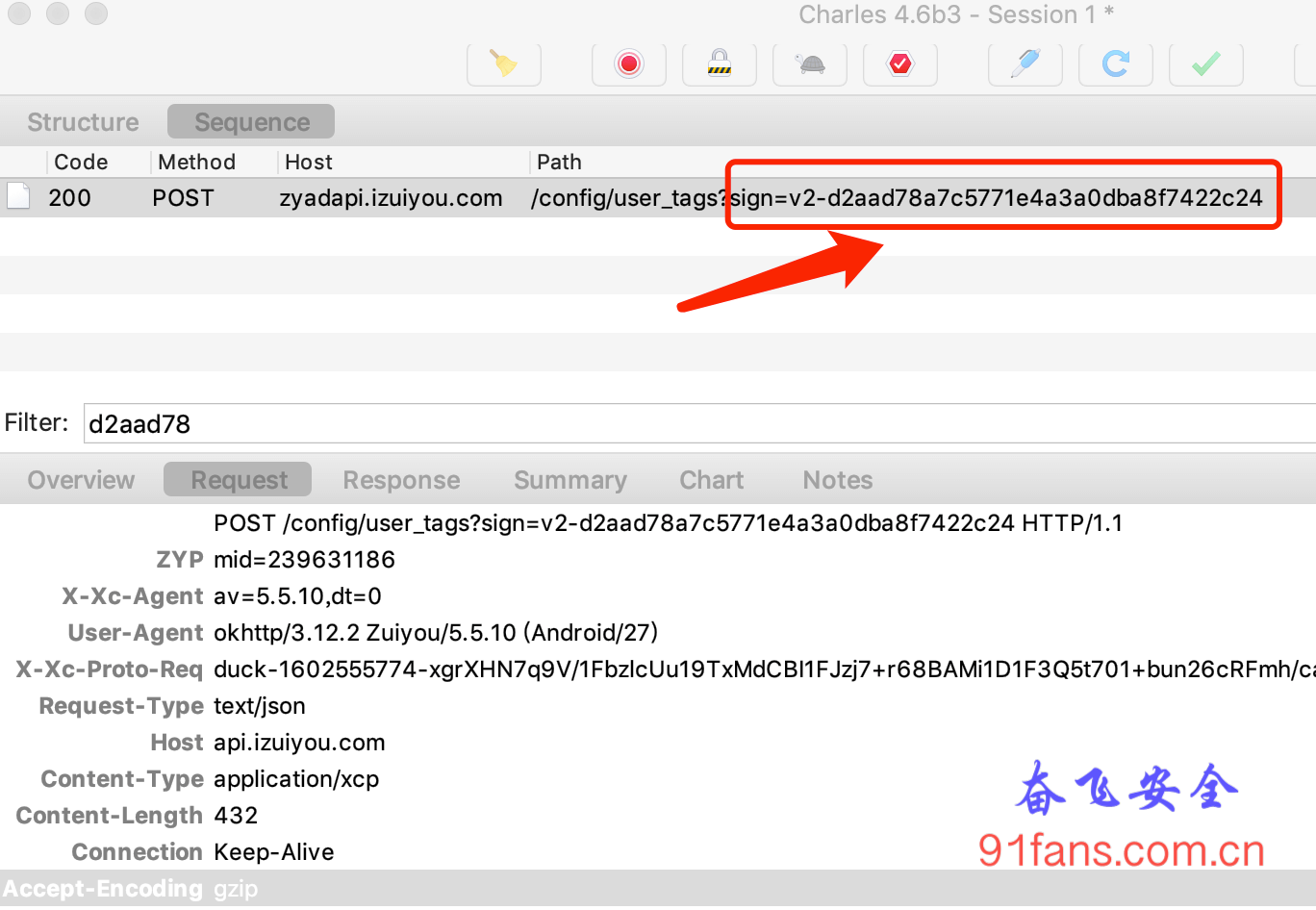

  • 使用charles对目标app进行抓包,抓包结果如下:
charles1
1:charles

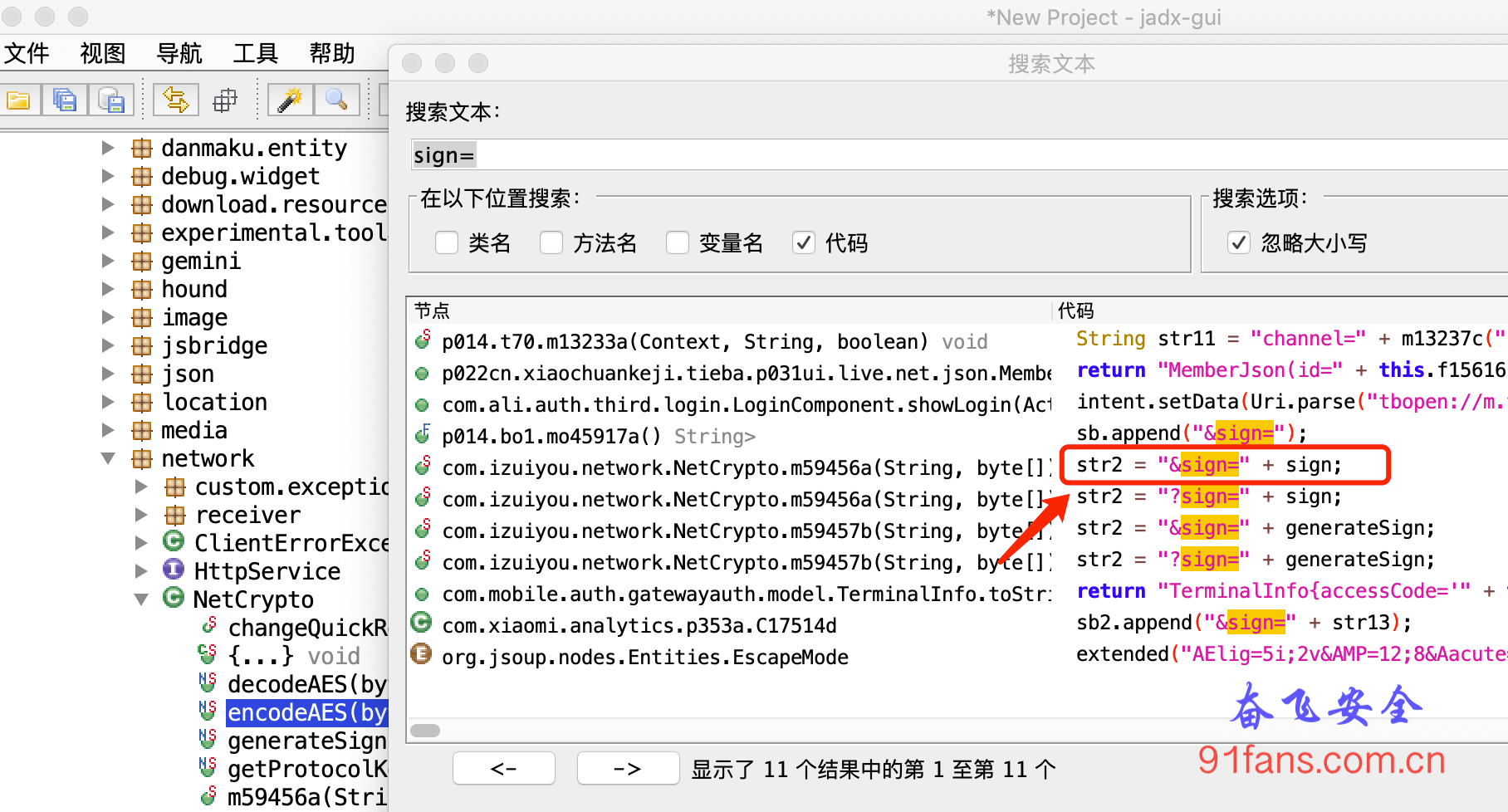

  • 使用 jadx反编译某段子App的apk,然后搜索文本 sign=
jadxfindsign
2:jadx

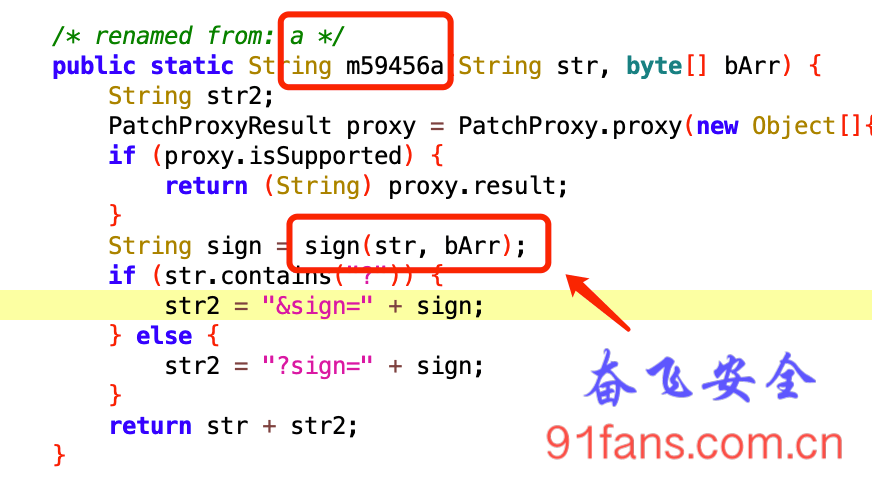

  • 双击之后进入到对应的代码中
signclass
3:jadxcode
  • 我们用frida来hook这个sign函数,sign函数有两个参数,String和byte[]
var ZYNetCrypto = Java.use("com.izuiyou.network.NetCrypto");

ZYNetCrypto.sign.implementation = function(arg1, arg2){
	console.log("\nNetCrypto.sign\n");
	console.log("str=" + arg1 + "\nbuf=" + printBytes(arg2) + "\nbuf2=" + Bytes2HexString(arg2) + "\njson=" + JSON.stringify(arg2));

	var result = this.sign(arg1, arg2);
	console.log("\nOut Rc=" + result);
	return result;
}
  • 运行 python3 run.py hook, 输出结果
str=https://api.izuiyou.com/config/user_tags
buf=0x69, 0x0c, 0x47, 0x56, 0x66, 0x75, 0x75, 0x85, 0x94, 0x94, 0x34, 0x44, 0x53, 0x53, 0x63, 0x72, 0x9b, 0x9b, 0x6a, 0xa6, 0x32, 0x5e, 0x75, 0x5f, 0x53, 0x9e, 0x8e, 0x59, 0xfd, 0x41, 0xe6, 0x62, 0xf3 ....
Out rc=https://api.izuiyou.com/config/user_tags?sign=v2-d2aad78a7c5771e4a3a0dba8f7422c24

签名sign的值是 v2-d2aad78a7c5771e4a3a0dba8f7422c24

  • 现在我们用同样的参数直接调用 com.izuiyou.network.NetCrypto.sign 函数
run.py
app = Flask(__name__)

@app.route('/zy')
def zy_test():
    global gScript

    str = 'https://api.izuiyou.com/config/user_tags'
    buf = bytearray([0x69, 0x0c, 0x47, 0x56, 0x66, 0x75, 0x75, 0x85, 0x94, 0x94, 0x34, 0x44, 0x53, 0x53, 0x63, 0x72, 0x9b, 0x9b, 0x6a, 0xa6, 0x32, 0x5e, 0x75, 0x5f, 0x53, 0x9e, 0x8e, 0x59, 0xfd, 0x41, 0xe6, 0x62, 0xf3 ....])
	res = gScript.exports.callzyfun(str,buf.hex());
	return jsonify(res);
hook.js
function callSignFunZy(str,buf){
	var result = 'null';

	console.log(str);
	var arr = HexString2Bytes(buf);

    Java.perform(function () {
        var ZYNetCrypto = Java.use("com.izuiyou.network.NetCrypto");
        var res = ZYNetCrypto.sign(str,arr) ;
        result = res;
    });

    return result;

}


rpc.exports = {
    callzyfun : callSignFunZy,	// 导出名不可以有大写字母和下划线
};

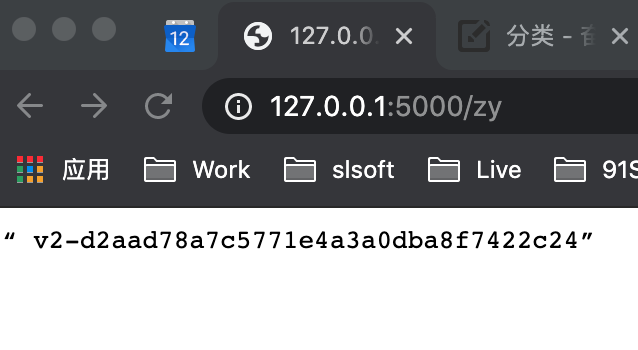

从浏览器里访问Flask服务 http://127.0.0.1:5000/zy 可以得到一样的结果 v2-d2aad78a7c5771e4a3a0dba8f7422c24

rc
4:rc
